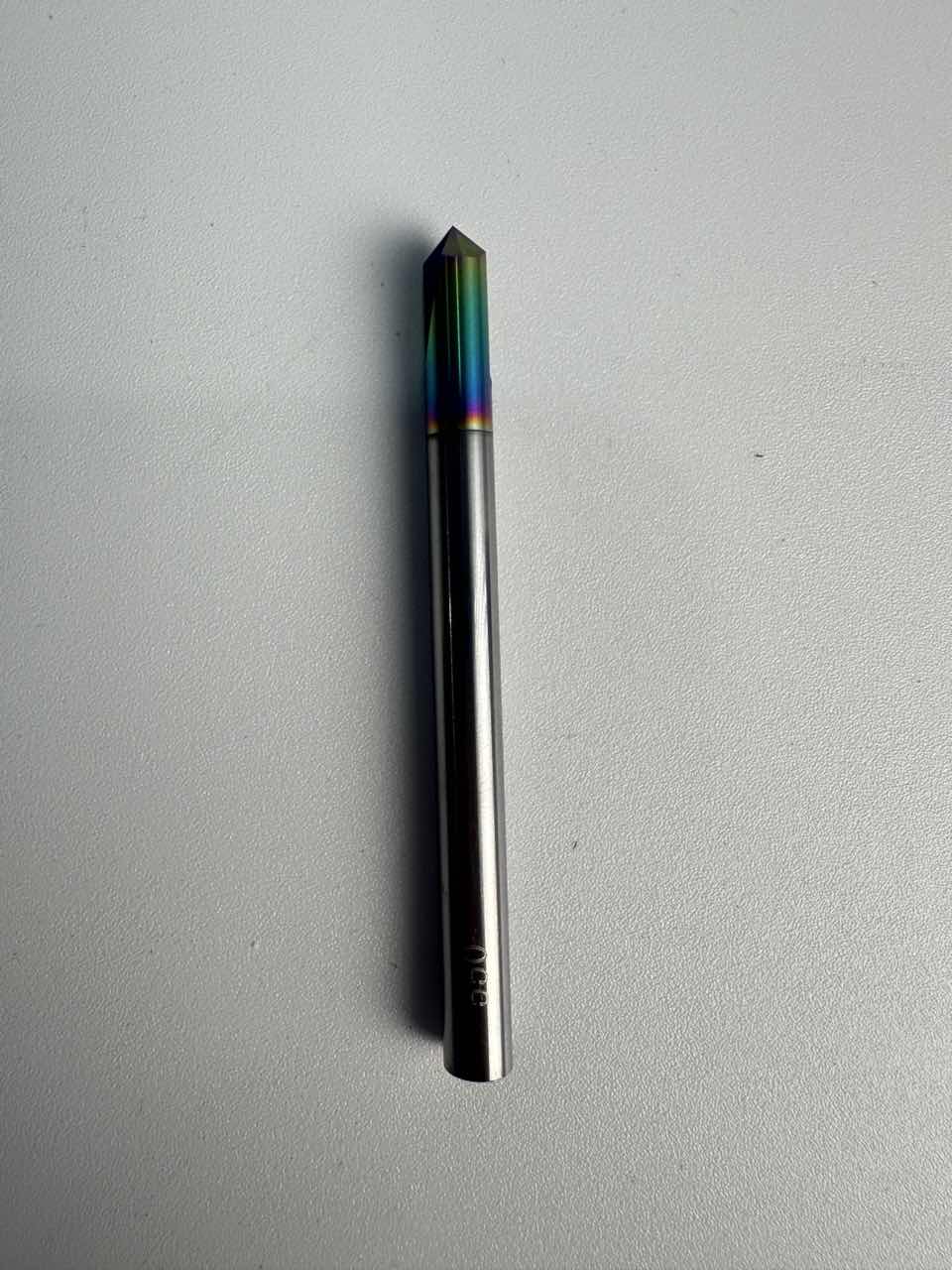

6mm Solid Carbide Chamfer Cutter (45° Chamfer, Extended Length)
Description
6 mm solid carbide chamfer cutter built for the TOPFAB TF500 desktop CNC: 45° chamfer with 2-flute design for clean edge chamfering and deburring.
Key Features
- Solid carbide construction - high rigidity and wear resistance for consistent precision.
- 2-flute design - balanced cutting and chip evacuation for smoother machining.
- 45° chamfer - clean edge chamfering and deburring.
- 6 mm cutting diameter - well-balanced size for versatile milling.
- Designed for the TOPFAB TF500 - drop-in fit for the desktop 5-axis CNC machine.
Typical Applications & Workable Materials
Ideal for chamfering and deburring operations. Suitable for metals and non-metals.
Specifications
| Parameter | Value |
|---|---|
| Designation | D6×45°×SD6×75L×2F |
| Cutting diameter | 6 mm / 0.236 in (approx.) |
| Flute length | [TO BE CONFIRMED] |
| Shank diameter | 6 mm / 0.236 in (approx.) |
| Overall length | 75 mm / 2.953 in (approx.) |
| Number of flutes | 2 |
| Chamfer angle (per side) | 45° |
| Reach (gage length) | 50 mm / 1.969 in (approx.) |
| Recommended cutting speed | 565-754 m/min |
| Recommended feed per tooth | 0.01-0.02 mm/tooth (0.0004-0.0008 in/tooth approx.) |
| Tool life | [TO BE CONFIRMED] |
| Recommended work material | Metals / Non-metals |
| Applicable machine | TF500 |
| Certifications | CE / FCC / RoHS: [TO BE CONFIRMED] |
| IP rating | [TO BE CONFIRMED] |
| Warranty | [TO BE CONFIRMED] |
Packaging & Delivery
Weight, packaging dimensions and delivery lead time: [TO BE CONFIRMED].
